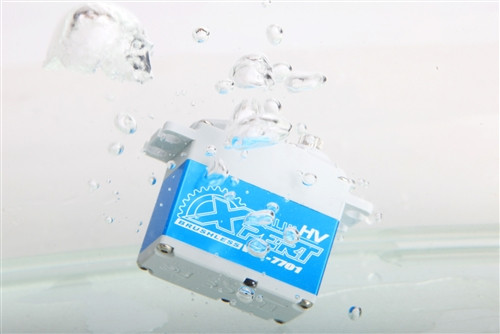

This is Xpert WR-7701-HV Standard Size Waterproof Servo.
Features
- IP67 certified fully waterproof design
- Brushless motor design provides extremely high speed, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Plastic upper and lower with aluminum middle case for optimized thermal dissipation and durability.
- Strong All Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
- Power Supply: 6.0V~8.4V
- Speed (sec/ 60°):
- @6.0V: .154 sec/60°
- @7.4V: .125sec/60°
- @8.4V: .118 sec/60°
- Torque (oz/in):
- @6.0V: 257.75 oz-in
- @7.4V: 317.99 oz-in
- @8.4V: 360.88 oz-in
- Torque (kg/cm):
- @6.0V: 18.57 kg-cm
- @7.4V: 22.91 kg-cm
- @8.4V: 26 kg-cm
- Dimensions: 40x 37.8x20 mm
- Weight: 70.3g
- Frequency: 200/333 Hz
- Range: 50~400 Hz
- Center Position: 1520us
- Applications: 1/10 & 1/8 Surface, Boat Rudder
- Matching Gear Set: XGS7291S
- Matching Case: XP-05
